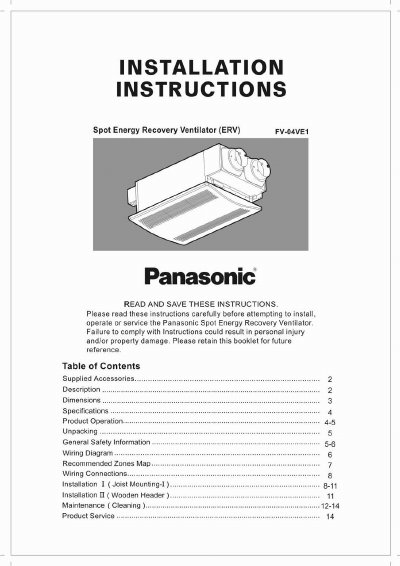

Panasonic FV-04VE1 Installation Instructions

About this manual

This document provides installation instructions, safety information, and operational details for the Panasonic Spot Energy Recovery Ventilator (ERV), Model FV-04VE1. The unit utilizes two Sirocco fans driven by a capacitor motor to exchange energy between stale exhaust air and fresh outside air, recovering both heat and moisture.

What's inside

• Supplied Accessories
• Dimensions
• Specifications
• Product Operation
• Unpacking
• General Safety Information
• Wiring Diagram
• Recommended Zones Map

Specifications

Frequently asked questions

What is the recommended voltage for this unit?

The electric service supply voltage must be 120 V, 60 Hz.

Can this unit be used in a bathroom or kitchen?

No, it should not be installed in high humidity spaces such as bathrooms, kitchens, or laundry rooms.

What happens during frost prevention mode?

The energy recovery function is disabled and the unit works as a normal ventilation fan without bringing fresh air into the house.
