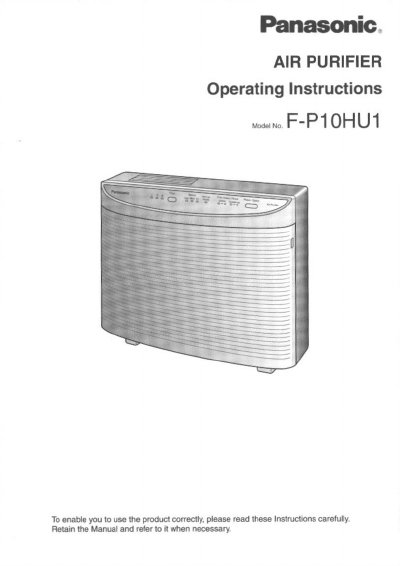

This document provides operating instructions for the Panasonic FP10HU1 air purifier. It details safety precautions regarding electrical use and placement, identifies key components such as the control panel and filter unit, and explains how to install filters and operate the device in various modes including manual speed selection and interval timing.
| Power Supply | 120V AC / 60Hz |
|---|---|
| Air Speed Levels | Hi, Med, Low |
| Power Consumption (Hi) | 68 W |
| Air Volume (Hi) | 100 CFM |
| Air Volume (Med) | 67 CFM |
| Air Volume (Low) | 40 CFM |
| Cord Length | 8.2 ft |
| Dimensions (H x W x D) | 15" x 18" x 6" |
| Applicable Room Size | 10 ft X 12 ft |
| Weight | 10.1 lbs |
The internal electronic counter indicates when to replace the filters, approximately every 3 years for the HEPA filter.
The internal electronic counter indicates when to replace the filters, approximately every 1 year for the Deodorize filter.
The Part No. for the replacement HEPA filter is F-Y110XT.
The Part No. for the replacement Deodorizing filter is F-Y510XT.
