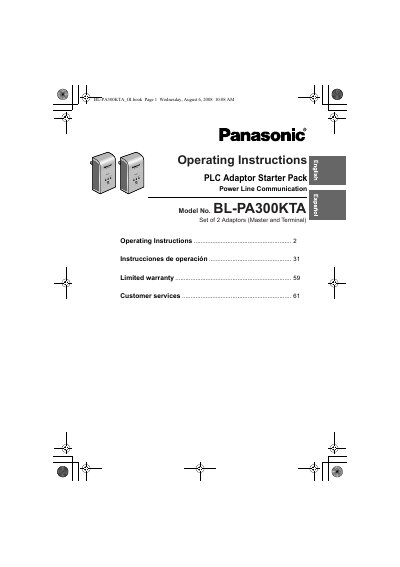

Panasonic BL-PA300KTA-MUL PLC Adaptor Starter Pack Operating Instructions

This is a user manual for Panasonic PLC Adaptor Starter Pack Power Line Communication Model No. BL-PA300KTA Set of 2 Adaptors (Master and Terminal) PLC LAN MASTER HD-PLC BL-PA300 SETUP.

Brand: Panasonic
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 64
File format: PDF
File size: 1.6 MB
Published: 08 August, 2012
Updated: 30 September, 2023
MD5 checksum: 44D06D8684467595B0163716893BEAC1
PDF: Panasonic BL-PA300KTA-MUL PLC Adaptor Starter Pack Operating Instructions PDF

About this manual

This document provides operating instructions for the Panasonic BL-PA300KTA-MUL PLC Adaptor Starter Pack, which includes a set of two adaptors (Master and Terminal) for High Definition Power Line Communication. The manual guides users through setting up flexible home networking by connecting devices to existing electrical wiring without running new cables.

What's inside

Introduction
Important Safety Instructions
Electrical Environment Information
Installation
Connecting Adaptors to Network Devices
Power Save Mode
Understanding the Indicators
Testing a Terminal's Network Speed
Troubleshooting
Specifications

Specifications

Max PHY Rate	210 Mbps
Encryption Standard	AES 128-bit
Power Consumption (Normal)	around 3 W
Power Consumption (Save Mode)	less than 1 W
Max Adaptors Supported	Up to 16 adaptors

Frequently asked questions

What is included in the BL-PA300KTA-MUL starter pack?

The package includes a set of two adaptors, one Master and one Terminal.

How does the Power Save Mode work?

If a terminal's LAN port is inactive for more than 20 minutes, the adaptor automatically enters Power Save mode.

Can I connect this product to a power strip?

Yes, but avoid using power strips with noise filters or surge protectors, and do not use nested power strips.
