The TS61 series are highly precise, low power consumption voltage detectors, manufactured using CMOS and laser trimming technologies. Detect voltage is extremely accurate with minimal temperature drift. Both CMOS and N-channel open drain output configurations are available.

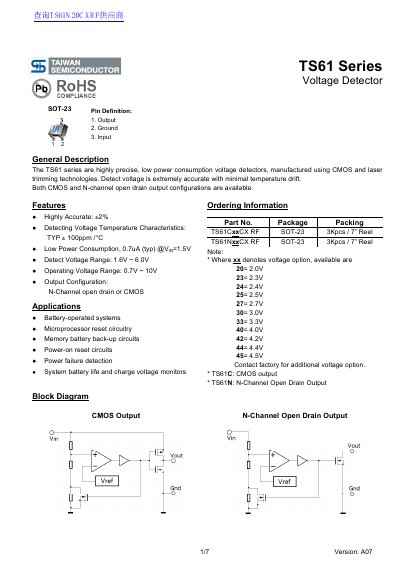

This document provides a comprehensive technical overview of the TS61 Series voltage detectors manufactured by Taiwan Semiconductor. The devices are designed for low power consumption and high accuracy, utilizing CMOS and laser trimming technologies. They are available in both CMOS and N-channel open drain output configurations within a SOT-23 package.
| Detect Voltage Range | 1.6V ~ 6.0V |
|---|---|
| Operating Voltage Range | 0.7V ~ 10V |
| Supply Current (Typ) | 0.7uA @Vin=1.5V |
| Detecting Voltage Accuracy | +2% - |
| Operating Ambient Temperature | -40 ~ +85 °C |
Both CMOS and N-channel open drain output configurations are available.
The typical supply current is 0.7uA when the input voltage is 1.5V.
Yes, the document explicitly states RoHS compliance for the TS61 Series.
