The PRIMUS control unit is a single-board electronic device with digital signal processing and self-calibration capabilities, suitable for detecting metal faults. It features a compact design and advanced microprocessor technology, with the ability to store data for 8 products and automatic or manual metal reset functionality.

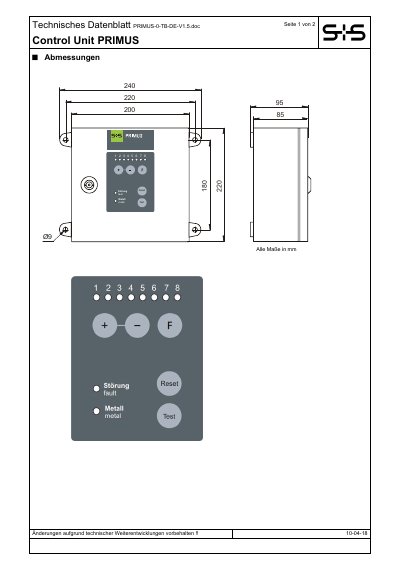

This document is a technical data sheet for the S'S Control Unit PRIMUS, a device used in separation and sorting applications. It outlines the physical dimensions, environmental operating conditions, and electrical specifications of the unit.
The unit features modern microprocessor technology with self-monitoring capabilities and includes a membrane keyboard with three operating buttons. It supports various accessories such as external flashlights, horns, and signal combinations, and is compatible with specific detection coil series. This manual is written in German.
| Operating Voltage | 100-240 VAC |
|---|---|
| Current Consumption | 200 mA at 115V |
| Fuse Rating | 1.6A |
| Cable Length | 1.8 m |
| Operating Temperature | -10 to +50 C |
| Relative Humidity | 25 - 85% |
It is a control unit designed to work with metal detection systems.
The device features a membrane keyboard with three operating buttons.
