Technical data sheet of RAPID DUAL 200-350 metal separator, including dimensions, model number, maximum sensitivity and maximum throughput.

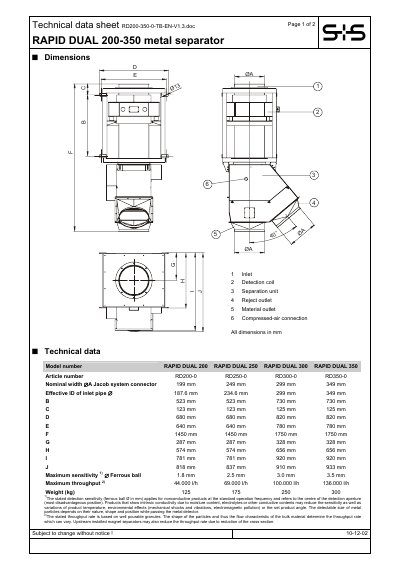

This document is a technical data sheet for the S'S RAPID DUAL 200-350 metal separator. It provides detailed specifications for four models (200, 250, 300, and 350), including physical dimensions, nominal widths, and maximum throughput rates for granulates and pellets.
The sheet outlines the conditions of use, such as maximum grain size, bulk material temperature limits, and ambient temperature ranges. It also details the scope of delivery, mechanical design materials (stainless steel, sheet steel), electrical requirements (100-240 VAC), and available options like visual alarms and explosion-proof versions.
| Nominal width | 199 mm to 349 mm |
|---|---|
| Maximum throughput | 44.000 I/h to 136.000 I/h |
| Weight | 125 kg to 300 kg |
| Operating voltage | 100-240 VAC |
| Ingress protection | IP 54 |
| Maximum bulk material temperature | +80° C |
The maximum grain size is a ball diameter of less than 8mm, a cylinder length of less than 20mm, or a flake of 100x100x10mm.
The maximum free fall height is 700mm above the equipment top edge.
Yes, an explosion-proof version with ATEX certification is available as a special version.
