The TS61 series are highly precise, low power consumption voltage detectors, manufactured using CMOS and laser trimming technologies. Detect voltage is extremely accurate with minimal temperature drift. Both CMOS and N-channel open drain output configurations are available.

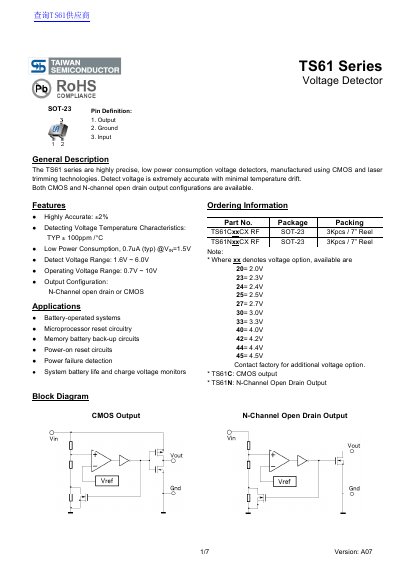

This document is a technical datasheet for the TS61 Series Voltage Detector manufactured by Taiwan Semiconductor using CMOS technology. The series offers highly accurate detection with minimal temperature drift and low power consumption, available in both CMOS and N-channel open drain output configurations.
The datasheet provides detailed electrical specifications, including detect voltage ranges of 1.6V to 6.0V, operating voltages up to 10V, and supply currents as low as 0.7uA typical at 1.5V. It includes application circuits for battery-operated systems and microprocessor reset circuitry, along with mechanical drawings for the SOT-23 package.
| Detect Voltage Range | 1.6V ~ 6.0V |
|---|---|
| Operating Voltage Range | 0.7V ~ 10V |
| Supply Current (Typ) | 0.7uA @Vin=1.5V |
| Operating Ambient Temperature Range | -40 ~ +85 C |
Both CMOS and N-channel open drain output configurations are available.
Yes, the document is titled 'ROHS COMPLIANCE' and explicitly mentions Pb) ROHS Compliance.
