Panasonic AG-6740P Time Lapse Recorder User Manual

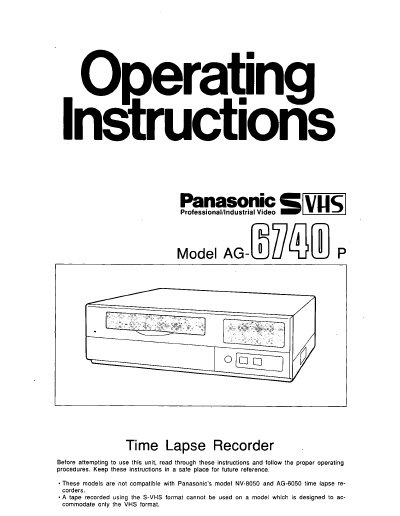

Panasonic AG-6740P Time Lapse Recorder User Manual - cover page
Brand
Panasonic
Category
Video Player
Document type
User Manual
Language
English
Pages
88
File format
PDF
File size
2 MB
Published
08 August, 2012
Updated
21 August, 2012
MD5 checksum
0D173B31904AFAC03A7DD671BC1020B3

About this manual

The Panasonic SVS Professional/Industrial Video V4 Time Lapse Recorder is designed for high-reliability time-lapse recording with S-VHS system capabilities. It features highly reliable IQ (intelligent quest) mechanisms, new brush-less motors, and a 16-bit digital servo system to ensure accurate tape transport and high picture quality with over 400 lines of horizontal resolution.

What's inside

  • Time Lapse Features
  • Recorder System Configuration
  • Controls and Their Functions
  • Description of Displays
  • Recording Modes
  • Playback Operations
  • Search Operations
  • Menu Screens Outline
  • Terminal Connections
  • Troubleshooting

Specifications

Horizontal Resolutionover 400 lines
Recording Modes2- to 480-hour
High-Density Recordingup to 960 hours
Motor Typebrush-less motors

Frequently asked questions

Is this unit compatible with NV-8050 or AG-6050 recorders?

No, these models are not compatible with Panasonic's model NV-8050 and AG-6050 time lapse recorders.

Can two-way or two-track recordings be made?

No, cassette tape can only be used for one-side, one direction recording.

What happens if liquid spills inside the recorder?

The recorder should be examined by qualified service personnel for possible damage.
