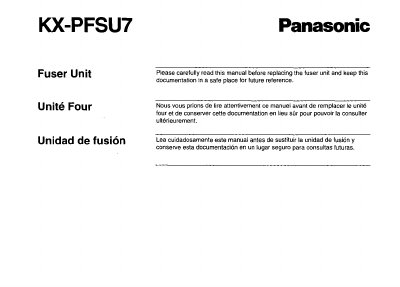

This manual provides step-by-step instructions for replacing the fuser unit (model KX-PFSU7) in a compatible Panasonic printer. It includes multilingual guidance on opening the front door, unlocking the unit with a green thumbscrew, and handling the hot surface safely.
The document details the removal process by sliding out the fuser using a safety catch mechanism and warns against using oil supply rolls from old units to prevent media jams. It also covers installation steps, including locking the new unit in place and proper waste disposal procedures.
You must turn off the printer and wait 10 minutes for the fuser to cool.
The fuser unit weighs approximately 3.1 kg (6.8 lbs).
No, do not use the oil supply roll installed in the old fuser as it may cause a media jam.
