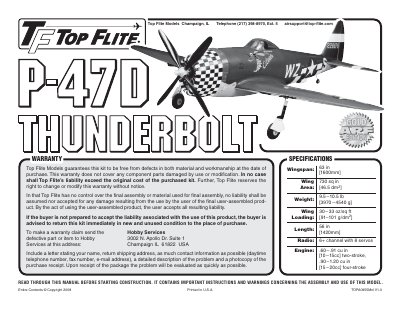

This document is a manual that contains important instructions and warnings regarding the assembly and use of a product. The product is manufactured by Top Flite Models and is guaranteed to be free from defects in material and workmanship at the date of purchase. The warranty does not cover any component parts damaged by use or modification. Top Flite does not assume any liability for damage resulting from the use of the user-assembled product, as they have no control over the final assembly or materials used. If the buyer is not willing to accept the liability associated with the use of the product, it is advised to return the kit in new and unused condition. To make a warranty claim, the defective part or item should be sent to Hobby Services along with a letter stating the name, return shipping address, contact information, detailed description of the problem, and a photocopy of the purchase receipt. Upon receipt, the problem will be evaluated.
This manual provides instructions for the assembly and use of the Top Flite Models TOPA0955Mnl P-47D Thunderbolt ARF model kit. It covers safety precautions, required radio equipment and engine recommendations, and step-by-step assembly procedures for the wing, fuselage, and finishing details. The document also includes a parts list, ordering information for replacement parts, and pre-flight checks.
| Wingspan | 63 in [1600mm] |
|---|---|
| Wing Area | 730 sq in[46.5 dm 2] |
| Weight | 9.5–10.5 lb [3970–4540 g] |
| Wing Loading | 30–33 oz/sq ft [91–101 g/dm2] |
| Length | 56 in[1420mm] |
| Radio Requirement | 6+ channel with 8 servos |
| Engine Requirement | .60–.91 cu in [10–15cc] two-stroke, .90–1.20 cu in [15–20cc] four-stroke |
A 6-channel radio system with a standard receiver and seven standard size servos with a minimum torque of 50 oz-in is required.
The model requires a .60-.91 cu in two-stroke or .90-1.20 cu in four-stroke engine.
The kit includes mechanical retracts, and optional pneumatic retracts can also be installed.
