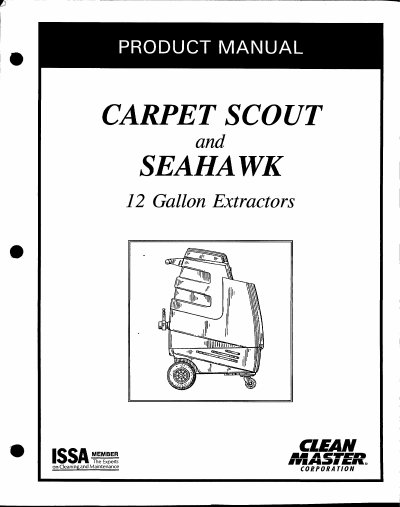

This document is the official product manual for the CleanMaster SCOUT and SEAHAWK 12-gallon extractors. It details machine specifications, including solution and recovery tank capacities, motor specifications, and electrical requirements. The guide covers safety precautions, step-by-step operation instructions for carpet and upholstery cleaning, and maintenance procedures.
| Solution Tank Size | 12 gallons |
|---|---|
| Recovery Tank Size | 11 gallons |
| Vacuum Motor (Scout) | Two 2-stage 1% HP |
| Vacuum Motor (Seahawk) | Two 3-stage 1% HP |
| Vacuum Lift | 150" lift at 115 v |
| Vacuum Lift (Seahawk) | 180" Lift at 115 v |
| Solution Pump (Scout) | 100 PSI Diaphragm Pump |
| Solution Pump (Seahawk) | 250 PSI Diaphragm Pump |
| Circuitry Voltage | 115 volts |
| Frequency | 50/60 hertz |
Only non-foaming cleaning solutions can be used; harsh solvents or petroleum products will damage the machine.
The water temperature should not exceed 160 degrees Fahrenheit.
If foam occurs in the recovery tank, a defoamer should be used immediately.
The Roto Cast Molded Tanks are warranted for 6 years.
