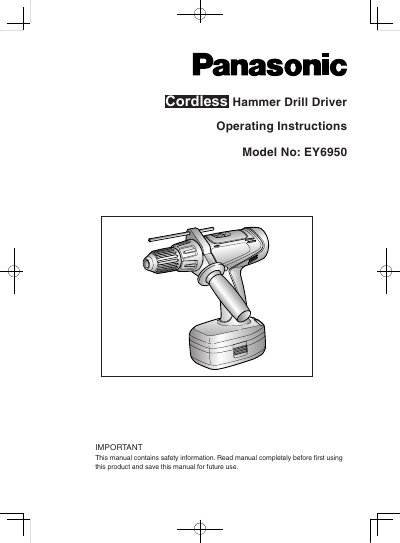

Panasonic EY6950 Hammer Drill Driver Operating Instructions

About this manual

This document provides operating instructions for the Panasonic EY6950 Hammer Drill Driver. It covers general safety rules for battery-operated tools, specific safety guidelines for the drill, and functional descriptions of the tool's components such as the clutch handle, speed selector switch, and keyless drill chuck. The manual also details the assembly process for attaching or removing drill bits.

What's inside

• General Safety Rules
• Specific Safety Rules
• Battery Charger Safety
• Functional Description
• Assembly
• Attaching or Removing Bit

Frequently asked questions

What is the voltage rating of the EY6950 hammer drill driver?

The tool is powered by an 18V battery pack.

What is the maximum temperature for charging the battery pack?

Do not charge the battery pack when the temperature is above 40°C (104°F).

Which battery packs are compatible with the EY0110 battery charger?

The charger is compatible with battery packs EY9065, EY9066, EY9168, EY9080, EY9086, EY9180, EY9182, EY9001, EY9006, EY9101, EY9106, EY9200, EY9201, EY9136, EY9230, EY9231, EY9251, EY9117, EY9210, and EY9231.
