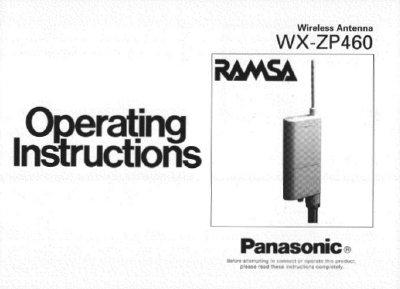

This manual provides operating instructions for the Panasonic WX-ZP460 wireless antenna. It is designed to be used with Diversity Receivers (WX-RP401, WX-RP402, WX-RP404) or the Distributor (WX-ZP490) to remotely control antenna sensitivity and prevent signal disruption caused by dead points.
The document details installation precautions, such as mounting orientation, distance from windows and electrical cables, and separation between antennas for effective diversity reception. It also includes a diagram of major operating controls and their functions.
The antennas should be kept between 16.7 ft (5m) and 66 ft (20m) apart to ensure effective reception.
When installed outdoors, the distance must be about twice the indoor specification, up to a maximum of 198 ft (60m).
