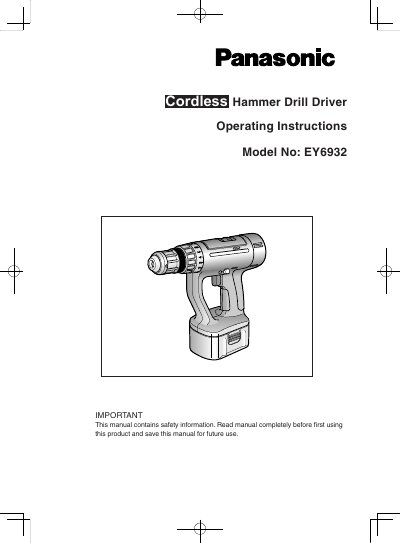

Panasonic EY6932 Hammer Drill Driver Operating Instructions

About this manual

This document provides operating instructions for the Panasonic EY6932 Hammer Drill Driver. It covers general safety rules applicable to all battery-operated tools, specific safety warnings for this model, and functional descriptions of key components such as the clutch handle, speed selector switch, and variable speed control trigger.

The manual details assembly procedures for attaching or removing drill bits using the keyless chuck. It also includes specific instructions for charging the compatible 15.6V battery pack (EY9230) with the EY0230 charger, emphasizing temperature limits and proper handling to prevent injury.

What's inside

• General Safety Rules
• Specific Safety Rules
• Functional Description
• Assembly
• Battery Charger & Battery Pack

Frequently asked questions

What is the voltage rating of the battery pack included with this drill?

The manual includes a 15.6V battery pack.

What is the maximum temperature at which the battery pack can be charged?

You must not charge the battery pack when the temperature is above 40°C (104°F).

What specific battery models are compatible with the EY0230 charger?

The charger is compatible with battery packs EY9065, EY9066, EY9080, EY9086, EY9180, EY9182, EY9001, EY9006, EY9101, EY9106, EY9107, EY9200, EY9201, EY9136, EY9230, and EY9231.
