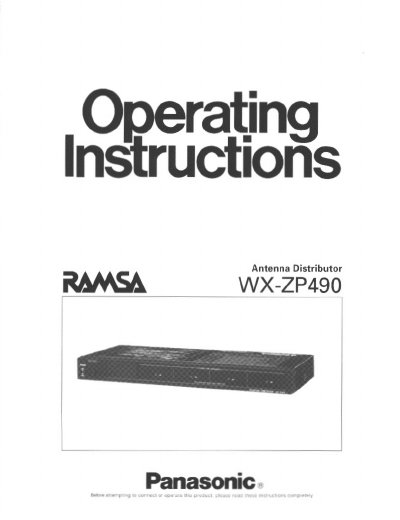

Panasonic WX-ZP490 Antenna Distributor Operating Instructions

Brand: Panasonic
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 10
File format: PDF
File size: 340 KB
Published: 07 August, 2012
Updated: 23 August, 2012
MD5 checksum: FCCA581624A1223E7F0F80BF7251F7E7
PDF: Panasonic WX-ZP490 Antenna Distributor Operating Instructions PDF

About this manual

This manual provides operating instructions for the Panasonic WX-ZP490 Antenna Distributor. The device is designed to be used with Diversity Receivers WX-RP401, WX-RP402, WX-RP404, and Wireless Antenna WX-ZP460 as a multi-channel diversity receiving system. It receives two inputs at terminals A and B, mixes them, and distributes three outputs from terminals A and B.

What's inside

Preface
Features
Precautions
Major Operating Controls
Connections
Whole Gain and Antenna Gain Switch Setting
Stacking
Rack Mounting

Specifications

Phantom Power Supply	12 VDC, 60 mA maximum
Power Input	120 VAC, 60 Hz
Recommended Coaxial Cable	RG-6/U

Frequently asked questions

What is the phantom power supply specification?

The phantom power supply is 12 VDC with a maximum of 60 mA.

How should the receiving antennas be placed for the best diversity effect?

Place two receiving antennas between 16.7 ft (65m) and 86 ft (20m) apart from each other.

What should be done if dead points frequently occur during operation?

Raise the antenna gain switch by one position, for example from -6 to NOMINAL.
