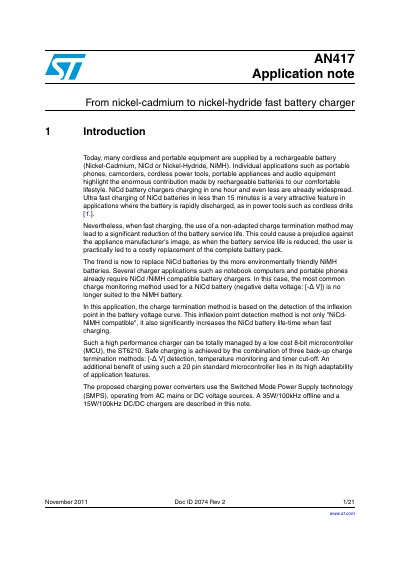

This document introduces the application of a fast battery charger from nickel-cadmium to nickel-hydride batteries. It discusses the features of the charger and the suitability of charge monitoring methods.
This document describes a high-performance fast battery charger design compatible with both Nickel-Cadmium (NiCd) and Nickel-Metal Hydride (NiMH) batteries. It addresses the limitations of traditional charge termination methods, such as the negative delta voltage method, which can reduce battery life or cause overheating in NiMH batteries. The proposed solution utilizes an inflexion point detection method to significantly increase battery service life while enabling fast charging.
The total charging time is 41 minutes.
The temperature increases by 7.5°C.
The charging current is 2.2 A.
