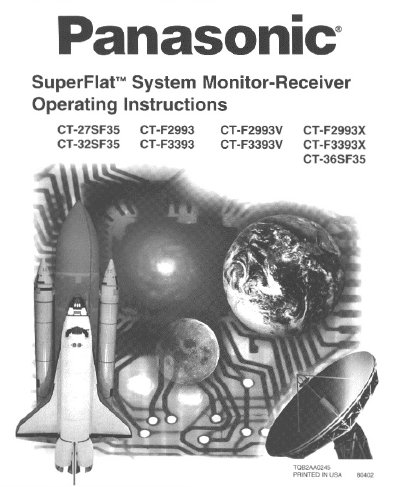

This manual provides operating instructions for the Panasonic SuperFlat™ System Monitor-Receiver models CT-27SF35 through CT-36SF35. It details customer record keeping, care and cleaning procedures, and comprehensive specifications including power requirements and channel capabilities.
The guide covers installation steps such as selecting a proper location, connecting AC power, and setting up cable or antenna connections. It also explains optional equipment connections for VCRs, audio amplifiers, and Dolby Center Channel inputs, along with instructions for the Roller Guide menu and special features like Picture-in-Picture.
| Power Source | 120V AC, 60Hz |
|---|---|
| Channel Capability | 181 VHF-12; UHF-56; Cable-124 |
| Video Input Jacks | 2 Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio Input Jacks | 2 Audio Input Jacks 500mV RMS 47K Ohm |
The unit requires a power source of 120V AC at 60Hz.
The model and serial number of this product are located on the back of the TV.
Yes, you can connect to an external audio amplifier input for listening through a stereo system.
