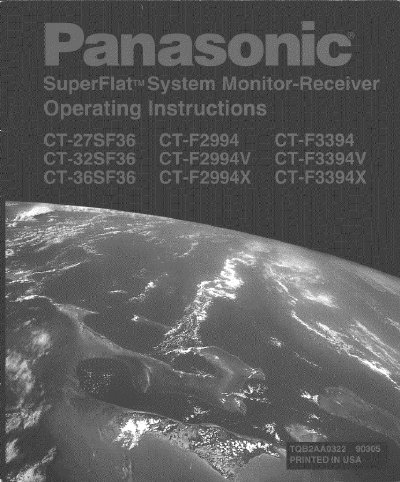

This manual provides operating instructions for Panasonic SuperFlat system monitors and receivers, covering models such as the CT-27SF36, CT-32SF36, CT-36SF36, and various CT-F series. It details setup procedures, including television location, cable and antenna connections, and optional equipment connections like VCRs and cable boxes. The guide also explains how to use the Roller Guide Menu, Picture in Picture (PIP) operation, and special features such as closed captioning and sleep timers. Safety warnings regarding electric shock and moisture exposure are included at the beginning.
| Channel Capability | 181 VHF-12; UHF-56; Cable-125 |
|---|---|
| Video Input Jacks | 4 Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio Input Jacks | 8 Audio Input Jacks 500mV RMS 47K Ohm |
| Video Output Jack | 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio Output Jacks | 2 Audio Output Jacks 0-2.0V RMS 4.7K Ohm |
Do not use abrasive cleaners on the screen.
Match the wide blade of the plug to the wide slot of the AC outlet and fully insert it.
An external incoming cable or antenna is required for proper reception.
