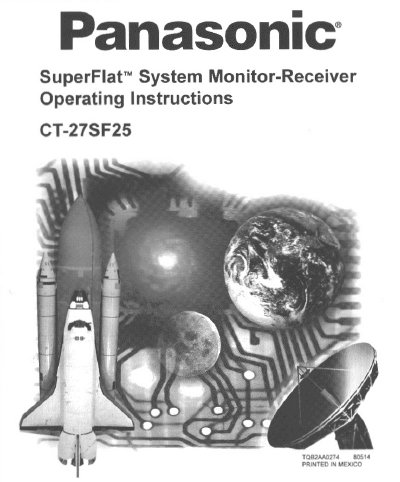

This document provides operating instructions for the Panasonic CT-27SF25 SuperFlat System Monitor-Receiver. It covers setup procedures, including television location, cable and antenna connections, and optional equipment connections such as VCRs and amplifiers. The manual details the use of the remote control, including the Roller Guide Menu and special features like Picture-in-Picture (PIP) operation with various video sources.
| Power Source | 120V AC, 60Hz |
|---|---|
| Channel Capability | 181 VHF-12; UHF-56; Cable-125 |
| Video Input Jacks | 2 Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio Input Jacks | 2 Audio input Jacks 500mV RMS 47K Ohm |
| S-Video Input | S-Video (Y-C) Connector |
The unit requires a power source of 120V AC at 60Hz.
Connect the television to a VCR and Cable Box, then press the PIP button on the Remote Control to display the PIP frame.
Change the channel and adjust the brightness and audio controls appropriately.
