This document is an operating instruction for color televisions, including instructions and connection methods for multiple models of televisions.

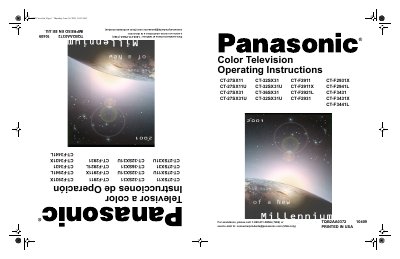

This manual provides operating instructions for a series of Panasonic Color Televisions featuring PureFlat picture tubes. It covers customer records, care and cleaning procedures, and detailed specifications regarding power requirements and input/output capabilities.
The guide details the installation process, including proper location selection to avoid heat or sunlight interference, and connection methods for various optional equipment such as VCRs, cable boxes, DVD players, and set-top boxes. It also explains how to use special features like Picture-in-Picture (PIP), Closed Captioning, Sleep Timer, and audio adjustments.
| Power Source | 120V AC, 60Hz |
|---|---|
| Channel Capability - VHF | 181 channels |
| Video Input Jacks Impedance | 75 Ohm |
| Audio Output Jacks Impedance | 4.7K Ohm |
The CT-27SX models require the PANASONIC TY-27SX31P stand, while the CT-32SX and CT-36SX models require the PANASONIC TY-32SX31P or TY-36SX31P stands respectively.
Yes, VCRs can be connected using the Video Input jacks on the back of the TV.
Do not use abrasive cleaners or spray any type of cleaning fluid directly on the screen.
