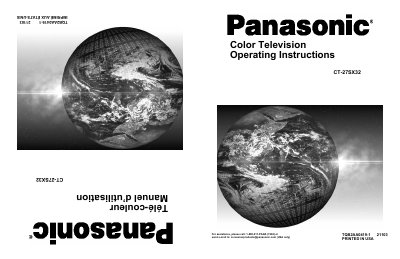

This is the operating instructions for Panasonic CT-27SX32 TV
This manual provides operating instructions for the Panasonic CT-27SX32 color television. It covers initial setup including the Auto Set Up Menu for channel scanning and geometric correction, as well as connecting optional equipment like VCRs and DVD players via component or composite video inputs.
The guide details the use of the front control panel and remote control, explaining how to navigate Icon Menus for Picture, Timer, Audio, and Channel settings. It also includes specific instructions for Two-Tuner Picture-in-Picture (PIP) operation and a troubleshooting chart for common issues.
| Power Source | CT-27SX32 (2.5 A) |
|---|---|
| Channel Capability | 181 VHF-12; UHF-56; Cable-113 |
| Video Input Jacks | 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio Output Jacks | 0-2.0V RMS 4.7K Ohm |
| Component Input | Y / Pg / Pr, 75 Ohms, Phono Jack Type |
The menu language can be set to English, Spanish, or French.
Yes, the TV supports 2 Tuner PIP operation allowing you to view a VCR and a Cable Box simultaneously.
This television receiver must be used only with the PANASONIC TY-27SX31P stand to avoid instability.
