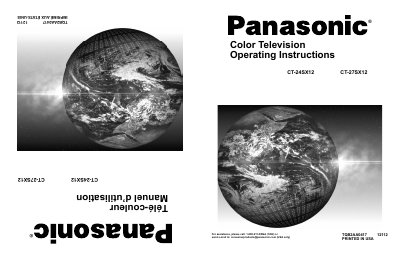

This operating manual introduces the use of Panasonic CT-24SX12, CT-27SX12 color televisions.
This manual provides operating instructions for the Panasonic CT-24SX12 and CT-27SX12 Color Television. It includes safety warnings, care and cleaning guidelines, and detailed specifications for both models.
The guide covers installation steps such as selecting a proper location, connecting power cords, and setting up cable or antenna connections. It also explains how to use the Auto Set Up Menu, navigate Icon Menus, program the remote control, and operate various features like V-Chip and Closed Captioning.
| Power Source (CT-24SX12) | 120V AC, 60Hz, 2.2 A |
|---|---|
| Power Source (CT-27SX12) | 120V AC, 60Hz, 2.4 A |
| Channel Capability | 181 VHF-12; UHF-56; Cable-113 |
| Video Input Jacks | 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio Output Jacks | 0-2.0V RMS 4.7K Ohm |
| Component Input (Y / Pg / Pr) | 75 Ohms, Phono Jack Type |
Press VOL > to select English, Spanish, or French in the Auto Set Up Menu.
Yes, connect the VCR to the Video Input 1 jacks (Y/Video and Audio L & R) or INPUT 2.
Limit the display time of stationary images and turn the power off when not in use to prevent permanent damage.
