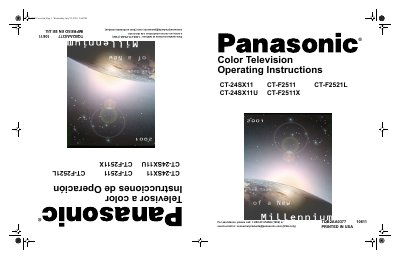

This manual introduces the operating instructions of color television CT-24SX11 CT-24SX11U CT-F2511 CT-F2511X CT-F2521L.
This manual provides operating instructions for the Panasonic CT-24SX11 series of color televisions. It includes safety warnings regarding electric shock and moisture, as well as care and cleaning guidelines for the screen and cabinet.
The document details installation procedures, including location requirements and connections for power, cable/antenna, VCRs, and other optional equipment like set-top boxes and DVD players. It also covers remote control usage, menu features such as closed captioning and sleep timers, picture adjustments, and a troubleshooting chart.
| Power Source (CT-24SX11) | (2.2A) 120V AC, 60Hz |
|---|---|
| Channel Capability | 181 VHF-12; UHF-56; Cable-113 |
| Video Input Jacks Impedance | 75 Ohm, Phono Jack Type |
| Audio Input Jacks Sensitivity | 500mV RMS 47K Ohm |
Users must change the setting to Antenna Mode in the Setup Menu.
Do not use abrasive cleaners or spray any cleaning fluid directly on the screen.
The CT-24SX11 model requires a power source of 120V AC, 60Hz at 2.2A.
Use 75-ohm coaxial shielded cables for audio and video connections.
