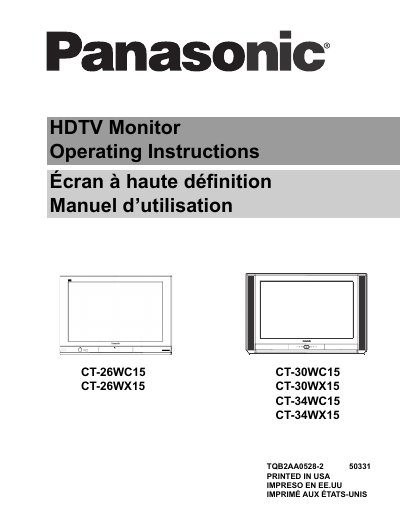

Panasonic CT-26WC15/CT-26WX15/CT-30WC15/CT-30WX15/CT-34WC15/CT-34WX15 Manual

This document is a color TV operating instructions, which introduces the use and maintenance of color TVs.

Brand: Panasonic
Category: Television
Document type: User Manual
Language: English
Pages: 64
File format: PDF
File size: 1.3 MB
Published: 06 August, 2012
Updated: 30 September, 2023
MD5 checksum: 34AE316EA535F77B3040622A22786F30
PDF: Panasonic CT-26WC15/CT-26WX15/CT-30WC15/CT-30WX15/CT-34WC15/CT-34WX15 Manual PDF

About this manual

This manual provides operating instructions for the Panasonic CT-26WC15, CT-30WC15, CT-26WX15, CT-30WX15, CT-34WC15, and CT-34WX15 HDTV monitors. It includes safety warnings, care and cleaning guidelines, and detailed specifications for various models.

What's inside

Important Information
Care and Cleaning
Specifications
Feature Chart
Installation
Initial Set Up Menu
Optional Equipment Connections
Front Control Panel

Specifications

Power Source	120V AC, 60Hz
Channel Capability - VHF	12
Channel Capability - UHF	56
Video Input Jacks	1Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks	500mV RMS 47K Ohm

Frequently asked questions

What steps should be taken to prevent permanent damage to the picture tube from fixed images?

Limit the display of fixed image program material to no more than 15% of total viewing time per week and turn the power off when not in use.

What are the power source requirements for the CT-34WC15 and CT-34WX15 models?

The CT-34WC15 and CT-34WX15 models require a 120V AC, 60Hz power source with a 3.3A rating.

What is the maximum number of VHF and UHF channels supported by these monitors?

The monitors support a channel capability of 12 VHF channels and 56 UHF channels.
