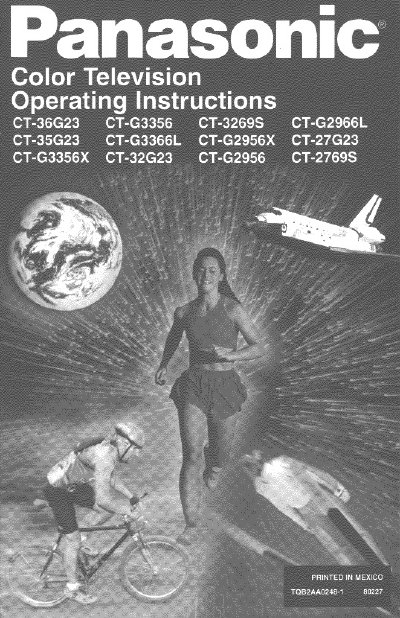

This manual provides operating instructions for a series of Panasonic Color Televisions. It covers setup procedures including location selection, cable connections, and optional equipment integration such as VCRs and audio amplifiers.
The document details the use of the Main Menu system via the ACTION button, Picture-in-Picture (PIP) operations with various sources like VCRs and Cable Boxes, and specific features like Game Guard Lock. It also includes a troubleshooting chart for common issues like sound or image problems.
| Power Source | 120V AC, 60Hz |
|---|---|
| Channel Capability | 181 VHF-12; UHF-56; Cable-113 |
| Video Input Jacks | 1Vpp, 75 Ohm, Phono Jack Type |
| Audio Input Jacks | 500mV RMS 47K Ohm |
The model and serial number of this product are located on the back of the TV.
Shielded audio and video cables, specifically 75-ohm coaxial shielded cables, should be used.
Press the ACTION button to display the Main Menu and Sub Menus.
