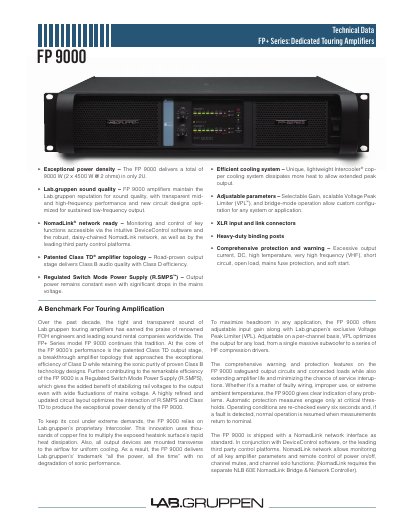

The Lab.gruppen FP 9000 is a compact amplifier in the FP+ Series that utilizes a patented Class TD output stage for exceptional efficiency and sonic purity
The Lab.gruppen FP 9000 is a dedicated touring amplifier within the FP+ Series, delivering a total peak output of 9000 W (2 x 4500 W @ 2 ohms) in a compact 2U chassis. It features a patented Class TD amplifier topology that combines the efficiency of Class D with the sonic purity of Class B.
| Peak total output both channels driven | 9000 W |
|---|---|
| Max. Output Power Per ch (both ch.'s driven) | 4500 W |
| Bridged per ch. | 8000 W |
| Signal To Noise Ratio | >112 dBA |
| Frequency response (1 W into 8 ohms) | 2 Hz - 34.2 kHz |
| Dimensions Width x Height x Depth | 483 mm x 88 mm x 396 mm |
| Weight | 12 kg |
The unit measures 483 mm in width, 88 mm in height, and 396 mm in depth, with a weight of 12 kg.
