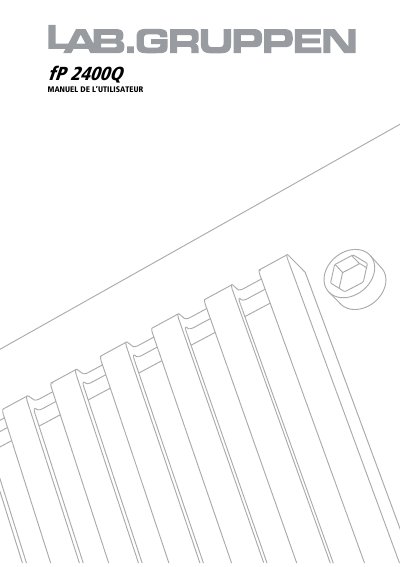

Lab.gruppen fP 2400Q Power Amplifier User Manual
This document is the French user manual for the Lab.gruppen fP 2400Q professional power amplifier. It provides instructions on unpacking the unit, identifying front and rear panel controls, and understanding various operating modes such as stereo, parallel, and bridged mono configurations.
The guide details installation requirements including cooling, grounding, and power supply specifications (100-127V or 200-240V). It also covers connectivity for symmetric and asymmetric inputs, speaker connections, and the specific functions of the MLS impedance matching switch. Safety precautions regarding high voltage at speaker terminals and radio interference are emphasized throughout. This manual is written in French.
Lab.gruppen fP 2400Q specifications
| Max output power @ 8 ohms | 370 W |
|---|---|
| Max output power @ 4 ohms | 500 W |
| Weight (Net) | 8.6 kg (19 lbs) |
| Operation voltage | 130 V-265 V AC |
| THD 20 Hz-20 kHz | 0.07 % |
| Channel separation | 70 dB |
| Input connectors | Neutrik Combo XLR type, 3 pin and 1/4" jack |
| Output connectors | Neutrik 4-pole Speakon connectors |
All Lab.gruppen fP 2400Q documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the MLS switch used for?
The MLS switch offers power matching for different loads and impedances.
Does the amplifier have short circuit protection?
Yes, it features ALS short circuit protection that keeps the amplifier within the Safe Operation Area.
What safety precautions should be taken regarding water?
Do not use this unit near water, do not spill liquids into or on the unit, and do not operate it while wet or standing in liquid.
How should the amplifier be grounded?
Always operate the unit with the chassis ground wire connected to the electrical safety earth.
Can I connect an amplifier output in parallel with another?
No, you must not connect an amplifier output in parallel or series with any other amplifier's output.
What happens if the amplifier gets too hot?
The over temperature protect indicator will illuminate as a warning, and if the temperature exceeds 90°C, the amplifier will mute the input signal until it cools down.
