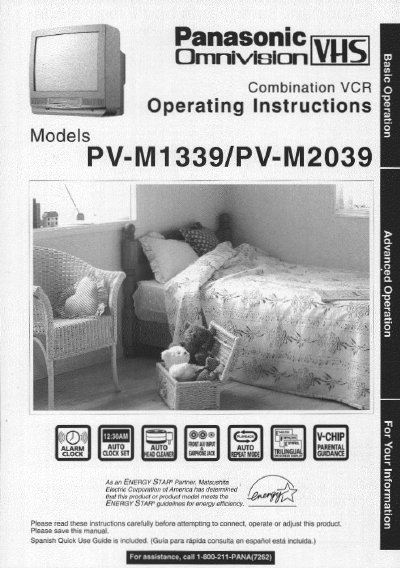

Panasonic PVM1339 Manual

About this manual

This manual provides operating instructions for the Panasonic VSQS1609 Combination VCR. It details safety precautions, installation steps including outdoor antenna connections, and initial setup procedures such as language selection and clock setting.

The guide covers comprehensive usage of the unit's TV functions, picture adjustment, and various recording modes like timer recording and one-touch recording. It also explains special features such as closed captioning, V-Chip control for parental ratings, and tape operation functions including slow motion and frame-by-frame playback.

What's inside

• Important Safeguards and Precautions
• Before Using
• Connections
• One Time Setup
• TV Operation
• Picture Adjustment
• Record ON a Tape
• Timer Recording
• Closed Caption System
• V-Chip Control Feature

Specifications

Frequently asked questions

What type of batteries should I use?

Do not mix old and new batteries or alkaline with manganese batteries.

What is the maximum recording time for a tape in Super Long Play (SLP) mode?

The unit can record up to 8 hours on a T160 cassette when set to SLP.

What type of batteries should be used for the remote control?

Users must insert alkaline or manganese batteries but cannot mix old and new ones.

How can a user prevent accidental erasure of recorded tapes?

The user should break off the tab on the record-erase hole cover to lock it in place.
