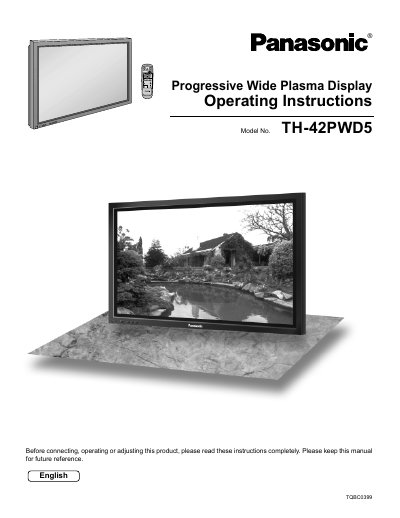

Panasonic TH-42PWD5 Plasma Display Operating Instructions

About this manual

This document provides operating instructions for the Panasonic TH-42PWD5 Progressive Wide Plasma Display. It includes important safety warnings regarding electric shock, moisture, and ventilation before connecting or adjusting the product.

The manual guides users through setting up the display, including connecting various input signals such as AV, Component/RGB, PC, and Serial terminals. It also details how to use remote control functions for power on/off, input selection, and advanced picture adjustments like 3D Y/C Filter and Color System settings.

What's inside

• Important Safety Instructions
• Accessories Supplied
• Basic Controls
• Connections
• Speakers connection
• AV Input Terminals connection
• Power ON/OFF and Input Signal Selection
• PICTURE Adjustments
• ADVANCED SETTINGS
• Troubleshooting

Frequently asked questions

What type of display technology does this Panasonic model use?

This product is a Progressive Wide Plasma Display.

How much space must be left around the unit if using an optional pedestal?

You must leave at least 3 15/16" (10 cm) or more on the top, left, and right sides.

What voltage does this Plasma Display require to operate?

The unit is designed to operate on 120 V AC, 50/60 Hz.
