This manual introduces how to install the antenna system, including equipment requirements, installation steps, precautions, etc.

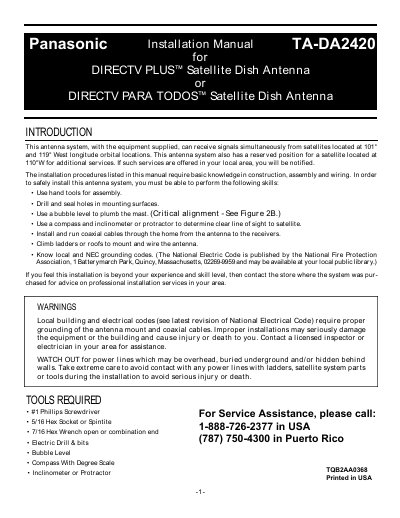

This manual provides installation procedures for the Panasonic TA-DA2420 satellite dish antenna, designed to receive signals from satellites at 101° and 119° West longitude. The system includes a hardware sorter and detailed steps for mounting the antenna on various surfaces, including walls, rails, chimneys, and poles. Users are required to have basic skills in construction, assembly, and wiring, including the ability to use hand tools, drill holes, and climb ladders.
| Satellite Coverage | 101° and 119° West longitude orbital locations |
|---|---|
| Reserved Position | 110°W |
| Elevation Angle Range | 30 to 60 degrees |
You can obtain precise dish pointing coordinates by following the on-screen menu feature of your satellite receiver, which will display the Azimuth, Elevation, and Tilt numbers.
It is strongly recommended that the dish be located more than 20 feet from overhead power lines to avoid serious injury or death.
