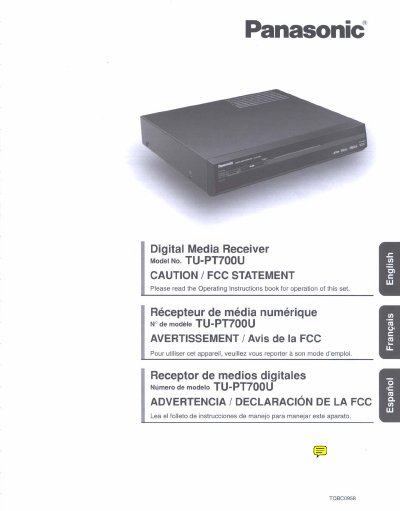

This document is the English user manual for the Panasonic TU-PT700U Digital Media Receiver. It provides essential safety information, FCC compliance statements, and initial setup guidance for the device.
The manual includes detailed technical specifications regarding power requirements, dimensions, and supported input/output connections such as HDMI, Component Video, and RGB. It also lists available features like 3D Y/C Filter, JPEG Viewer, and CableCARD slot support.
| Power Source | 120 VAC, 60 Hz |
|---|---|
| Maximum Power Consumption | 45 W |
| Stand-by Power Consumption | 22 W |
| Dimensions (W x H x D) | 16.9" x 3.4" x 14.8" |
| Mass | approx. 13.2 lbs |
The device operates within a temperature range of 32 °F to 104 °F (0 °C - 40 °C).
The unit requires a 120 VAC, 60 Hz power source.
The receiver measures 16.9" (430 mm) wide by 3.4" (86 mm) high by 14.8" (377 mm) deep.
The maximum power consumption is 45 W.
