This is a photo tachometer that can measure RPM and linear surface speed.

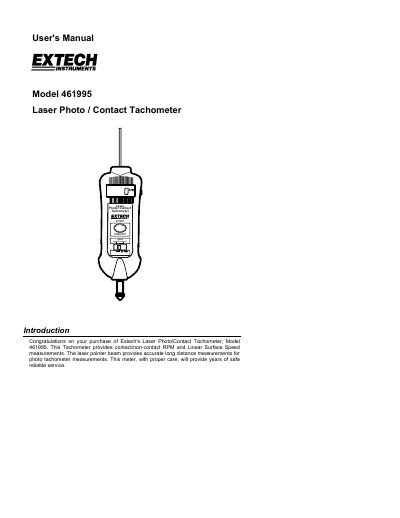

The Extech Model 461995 Laser Photo/Contact Tachometer is designed to provide both contact and non-contact RPM and linear surface speed measurements. The device features a laser pointer for accurate long-distance photo tachometer measurements and a rotating ring for contact measurements.
| Time base | Quartz crystal 4.194 MHz |
|---|---|
| Display | Reversible 5 digit 0.4" (10mm) LCD display |
| Laser light source | Less than 1mW; Class 2 red laser diode (645nm approx.) |
| Detecting Distance | 2 to 79" (50 to 2000 mm) |
| Operating Conditions | 32 °F to 122 °F (0 °C to 50 °C); RH 80% Max |
| Power Supply | 4 x 1.5 V AA batteries |
| Weight | 10.6oz. (300g) including battery |
| Size | 8.5 x 2.6 x 1.5" (210 x 67 x 38 mm) |
Extech warrants the instrument to be free of defects in parts and workmanship for one year from the date of shipment.
Slide the rear battery compartment cover off, replace the four 1.5V AA batteries, and replace the cover.
