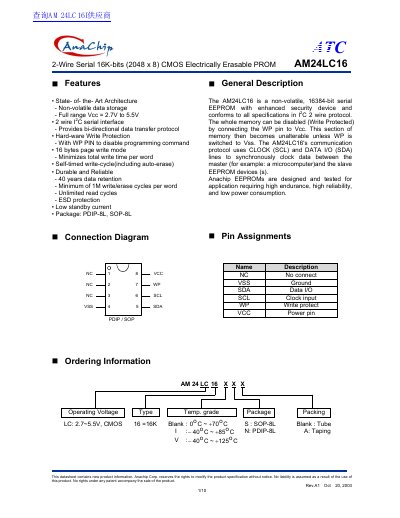

The AM24LC16 is a 2-wire serial 16K-bit (2048 x 8) CMOS electrically erasable PROM. It features non-volatile data storage, a 2-wire I2C serial interface, hardware write protection, 16-byte page write mode, and more.
The document details the specifications of the AM24LC16, a 2-Wire Serial 16K-bits CMOS Electrically Erasable PROM. It is designed for applications requiring high endurance, reliability, and low power consumption, operating over a voltage range of 2.7V to 5.5V.
| Memory Capacity | 16K-bits (2048 x 8) |
|---|---|
| Operating Voltage | 2.7V to 5.5V |
| Data Retention | 40 years |
| Write/Erase Cycles | 1M cycles per word |
| Clock Frequency | Up to 100 kHz |
| Package Types | PDIP-8L, SOP-8L |
The write cycle time is 5 milliseconds.
Connecting WP to Vcc disables programming commands, while connecting it to Vss enables normal memory operation.
The device supports current address read, random read, and sequential read.
