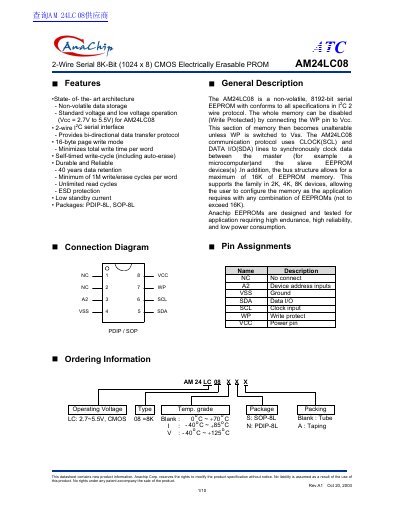

Anachip's AM24LC08 is a non-volatile, 8192-bit serial EEPROM that conforms to all I2C 2 wire protocol specifications. The AM24LC08 communication protocol uses CLOCK(SCL) and DATA I/O(SDA) lines to synchronously clock data between the master (for example a microcomputer)and the slave EEPROM devices(s) .In addition, the bus structure allows for a maximum of 8 devices to be connected to the bus. The AM24LC08 has a 16-byte page write mode to minimize the total write time per word. The AM24LC08 has a self-timed write cycle (including auto-erase). The AM24LC08 has a 40-year data retention period, a minimum of 1M write/erase cycles per word, unlimited read cycles, ESD protection and low standby current. The AM24LC08 is available in PDIP-8L and SOP-8L packages.
The AM24LC08 is a non-volatile, 8192-bit serial EEPROM manufactured by Anachip Corp. It conforms to the I2C 2-wire protocol and features standard and low voltage operation ranging from 2.7V to 5.5V. The device supports a 16-byte page write mode and a self-timed write cycle, including auto-erase, to minimize total write time.
| Memory Size | 8K-bit (1024 x 8) |
|---|---|
| Operating Voltage | 2.7V to 5.5V |
| Data Retention | 40 years |
| Write/Erase Cycles | 1M cycles per word |
| Interface | 2-wire I2C serial interface |
| Operating Temperature (Standard) | 0 to +70 °C |
| Operating Temperature (Industrial) | -40 to +85 °C |
| Clock Frequency | 0 to 100 kHz |
The device provides a minimum of 1M write/erase cycles per word.
The AM24LC08 offers 40 years of secure data retention without power.
The device supports standard and low voltage operation from 2.7V to 5.5V.
