ATC-2000 is a communication interface converter that is used to complete data conversion between TCP/IP and RS-232/422/485, and it is widely used in industrial control, access control, attendance system, meal system, POS system, building automation system, power system, monitoring and data acquisition system, self-service banking system, etc.

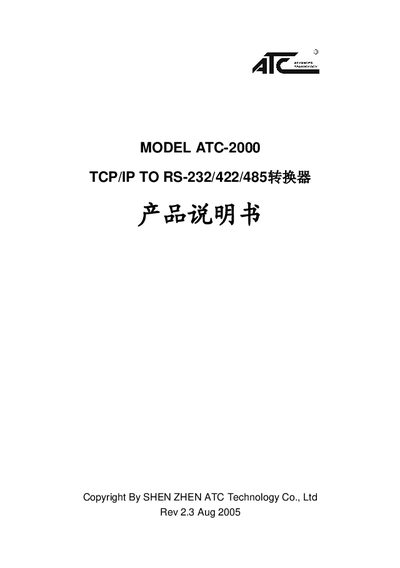

The ATC-2000 is a TCP/IP to RS‑232/422/485 communication converter designed for industrial control, access control, POS and monitoring systems. The manual provides an overview of the device, its main functions, and the default network configuration.
Key sections cover hardware installation, initial power‑on settings, detailed system configuration (serial mode, IP, DDNS, PPPoE), virtual COM port software setup, system management features, and a troubleshooting guide with common LED indicators and error messages. This manual is written in Chinese.
| Power supply voltage | +9 V to +24 V |
|---|---|
| Power supply current | 300 mA – 100 mA |
| Ethernet speed auto‑detect | 10/100 Mbps |
| Default IP address | 192.168.168.125 |
| RS‑232 DB9 pinout | PIN1 DCD IN, PIN2 RXD IN, PIN3 TXD OUT, PIN4 DTR OUT, PIN5 GND, PIN6 DSR IN, PIN7 RTS OUT, PIN8 RTS IN, PIN9 RI IN |
| LED indicator for Ethernet link | GREEN on when link established |
Verify the Ethernet cable connection between the ATC-2000 and the computer or hub, then ping the device to confirm network communication.
Make sure the RS‑232/422/485 cable is correctly connected and that the serial parameters (baud rate, data bits, parity, stop bits) match those of the connected device.
