The document describes a product called 24LC02. The product is an ATC circuit with pins such as VCC, WP, SCL, SDA, A0, A1, A2, and VSS. It is a memory chip with specific features and characteristics.

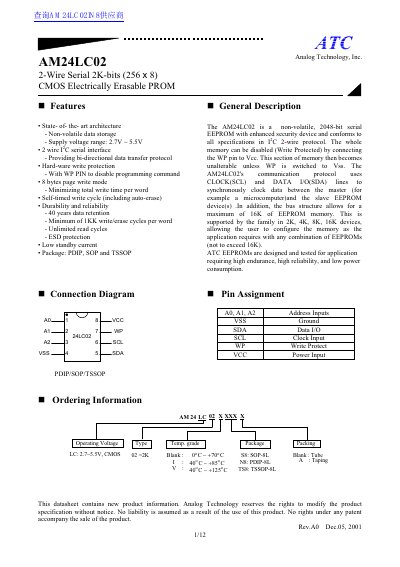

The document describes the AM24LC02, a 2-wire serial interface CMOS Electrically Erasable PROM (EEPROM) manufactured by Analog Technology, Inc. It features non-volatile data storage with a capacity of 2K-bits (256 x 8) and supports supply voltages ranging from 2.7V to 5.5V.
Key characteristics include hardware write protection via a WP pin, an 8-byte page write mode for efficiency, and high durability with up to 1 million write/erase cycles per word and 40 years of data retention. The device is available in PDIP, SOP, and TSSOP packages.
| Capacity | 2K-bits (256 x 8) |
|---|---|
| Supply Voltage Range | 2.7V ~ 5.5V |
| Data Retention | 40 years |
| Write/Erase Cycles | 1M write cycles |
| Operating Temperature (Commercial) | 0°C to +70°C |
| Clock Frequency | 100 kHz max |
Connecting the WP pin to Vcc disables programming commands, making the memory unalterable unless switched to Vss.
The AM24LC02 is available in PDIP, SOP, and TSSOP packages.
