ATS177 is an integrated Hall effect latched sensor designed for electronic commutation of brush-less DC motor applications. The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifies the Hall voltage, and a schmitt trigger to provide switching hysteresis for noise rejection, and open-collector output.

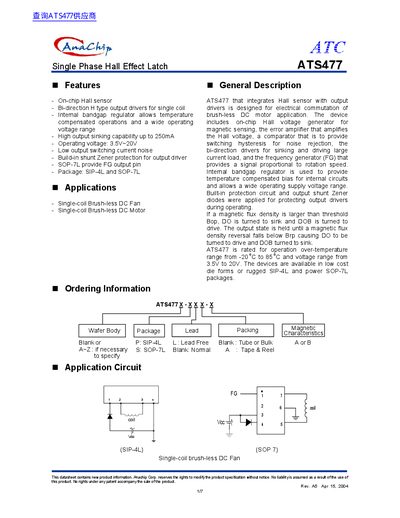

The Anachip ATS477 is an integrated circuit that combines a Hall sensor with bi-directional output drivers. It is specifically designed for the electrical commutation of single-coil brush-less DC motors and fans. The device features an on-chip Hall voltage generator, error amplifier, comparator, and frequency generator (FG) to provide rotation speed signals.
| Operating Voltage Range | 3.5V to 20V |
|---|---|
| High Output Sinking Capability | up to 250mA |
| Operating Temperature Range | -20°C to 85°C |
| Peak Start Up Current | 600 mA |
| Package Types | SIP-4L and SOP-7L |
It is designed for electrical commutation of single-coil brush-less DC motor applications.
Yes, it includes a built-in frequency generator (FG) that provides a signal proportional to rotation speed.
The device operates over a wide supply voltage range from 3.5V to 20V.
