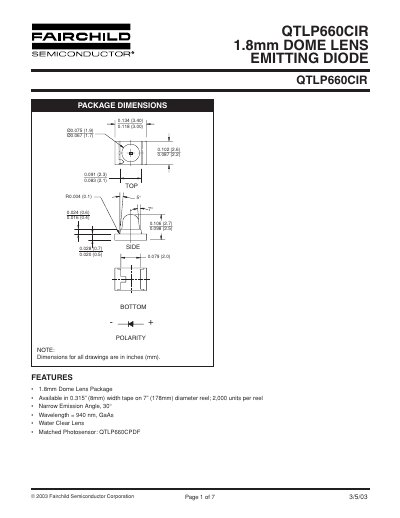

The QTLP660CIR is a light-emitting diode from Fairchild Semiconductor Corporation with a 1.8mm dome lens package, 940nm wavelength and 30° narrow emission angle. It can be used in various optoelectronic applications.
The Fairchild Semiconductor QTLP660CIR is a semiconductor emitting diode packaged in a 1.8mm dome lens. It is designed with a narrow emission angle of 30° and operates at a peak wavelength of 940 nm using GaAs technology. The device is available in a tape and reel format with 2,000 units per reel.
| Peak Emission Wavelength | 940 nm |
|---|---|
| Emission Angle | 30° |
| Operating Temperature | -40 to +85 °C |
| Continuous Forward Current | 65 mA |
| Reverse Voltage | 5 V |
| Power Dissipation | 130 mW |
| Peak Forward Current | 1.0 A |
| Units per Reel | 2,000 |
The peak emission wavelength is 940 nm when the forward current is 20 mA.
The maximum operating temperature is +85 °C.
The recommended soldering temperature for the iron is 240 °C for 5 seconds.
