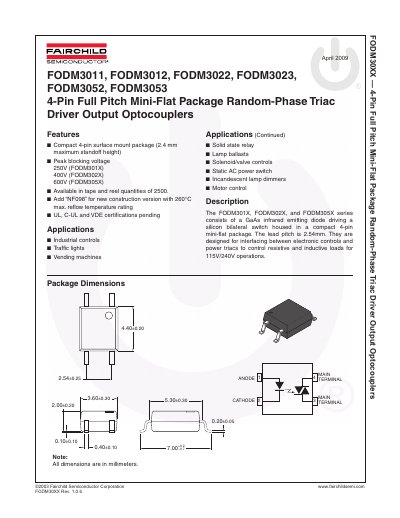

The FODM30XX series is a 4-pin full-pitch mini-flat package random-phase triac driver output optocoupler with 2.4 mm maximum standoff height from Fairchild Semiconductor Corporation. It features peak blocking voltage 250V (FODM301X), 400V (FODM302X), 600V (FODM305X), and is pending UL, C-UL and VDE certifications. It is suitable for industrial controls, traffic lights, vending machines, solid state relays, lamp ballasts, solenoid/valve controls, static AC power switches, incandescent lamp dimmers and motor control.
The document describes the FODM301X, FODM302X, and FODM305X series of 4-pin full pitch mini-flat package random-phase triac driver output optocouplers. These devices consist of a GaAs infrared emitting diode driving a silicon bilateral switch housed in a compact 4-pin surface mount package with a lead pitch of 2.54mm.
| Package Type | 4-Pin Full Pitch Mini-Flat Package |
|---|---|
| Lead Pitch | 2.54mm |
| Peak Blocking Voltage (FODM301X) | 250V |
| Continuous Forward Current | 60 mA |
| Peak Forward Current | 1 A |
| Operating Temperature Range | -40 to +100 °C |
The recommended operating I F lies between 5mA and the absolute maximum of 60mA.
No, this optoisolator should not be used to drive a load directly; it is intended to be a trigger device only.
