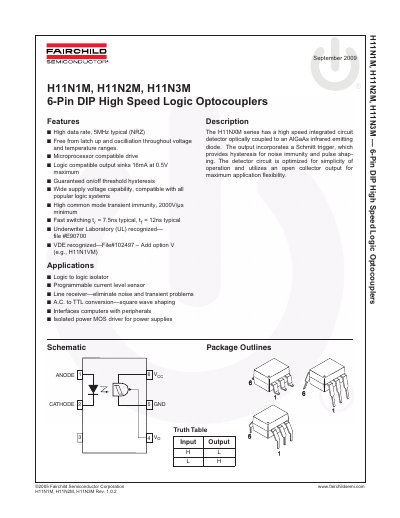

H11N1M, H11N2M, H11N3M are 6-pin DIP high speed logic optocouplers with features including high data rate, immunity to latch up and oscillation, microprocessor compatible drive, logic compatible output, etc.
This document provides technical specifications and application information for the Fairchild Semiconductor H11NXM series of high-speed logic optocouplers. These devices feature a high-speed integrated circuit detector optically coupled to an AlGaAs infrared emitting diode, optimized for microprocessor compatibility and noise immunity.
| Typical Data Rate | 5 MHz |
|---|---|
| Typical Switching Time (Rise) | 7.5 ns |
| Output Current Sink | 16 mA |
| Operating Temperature Range | -40 to +85 °C |
| Forward Current (Continuous) | 30 mA |
| Reverse Voltage (Emitter) | 6 V |
The maximum output current is 50 mA.
Yes, it is VDE recognized with File #102497.
