HCPL0XXX is a high speed transistor optocoupler produced by Fairchild Semiconductor Corporation. It has a speed of 1 Mbit/s, a minimum common mode transient immunity of 15 kV/µs, and is suitable for line receivers, pulse transformer replacements, output interfaces to CMOS-LSTTL-TTL and other applications.

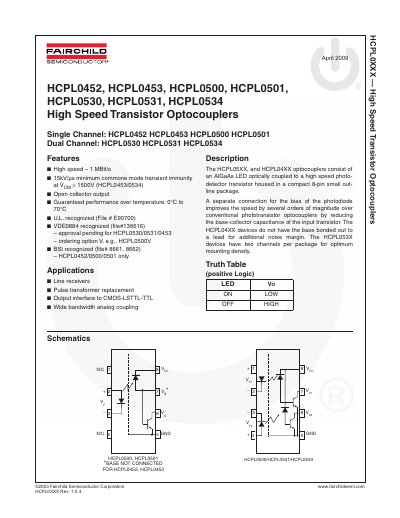

This document provides technical specifications for Fairchild Semiconductor's High Speed Transistor Optocouplers. The series includes single channel devices (HCPL0452, HCPL0453, HCPL0500, HCPL0501) and dual channel devices (HCPL0530, HCPL0531, HCPL0534). These components feature an AlGaAs LED optically coupled to a high speed photo-detector transistor housed in a compact 8-pin small outline package.
| Operating Temperature Range | -40 to +85 °C |
|---|---|
| Average Forward Input Current | 25 mA |
| Output Voltage Range | -0.5 to 20 V |
The device supports a maximum average forward input current of 25 mA.
These models offer a minimum of 15kV/us of common mode transient immunity when Von is 1500V.
The devices are guaranteed to perform over a temperature range of -40°C to +85°C.
