Extech RH300 Digital Psychrometer Specifications

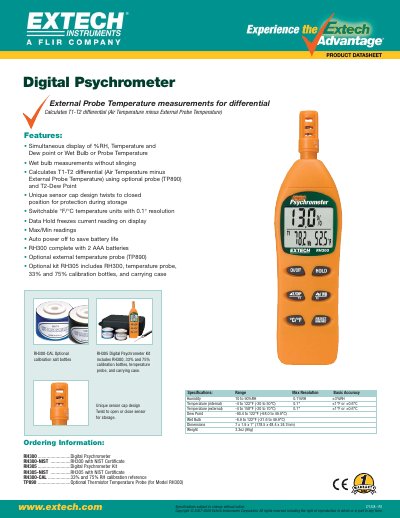

Extech RH300 Digital Psychrometer Specifications - cover page
Brand
EXTECH
Category
Other Electronics
Document type
Product Leaflet
Language
English
Pages
1
File format
PDF
File size
207 KB
Published
01 August, 2012
Updated
29 September, 2023
Model
RH300
MD5 checksum
E103171B04789D642D94C119613ACA42

About this manual

The Extech RH300 Digital Psychrometer measures humidity, temperature, dew point, and wet bulb readings. It features a unique sensor cap design that twists to open or close for protection during storage and allows for switchable °F/°C temperature units with 0.1° resolution.

The device includes Max/Min readings, a data hold function, and auto power off to save battery life. It is supplied with two AAA batteries and can be ordered with optional accessories such as the TP890 external temperature probe or the RH305 kit.

What's inside

  • Specifications
  • Ordering Information
  • Features
  • Humidity Measurement
  • Temperature Measurement
  • Dew Point
  • Wet Bulb
  • Dimensions
  • Weight
  • Calibration

Specifications

Humidity Range10 to 90%RH
Internal Temperature Range-4 to 122°F (-20 to 50°C)
External Temperature Range-4 to 158°F (-20 to 70°C)
Dimensions7 x 1.9 x 1" (178.5 x 48.4 x 24.7mm)
Weight3.3oz (95g)

Frequently asked questions

What is the humidity measurement range?

The humidity range is 10 to 90%RH.

Does the RH300 measure external temperature?

Yes, it can measure external temperature using an optional external temperature probe (TP890).

What is the resolution for temperature measurements?

The temperature resolution is 0.1°.
