The 74LVQ04 is a low voltage hex inverter produced by Fairchild Semiconductor Corporation. It is ideal for low power/low noise 3.3V applications and guarantees simultaneous switching noise level and dynamic threshold performance, guaranteed pin-to-pin skew AC performance, and guaranteed incident wave switching into 75 ohms.

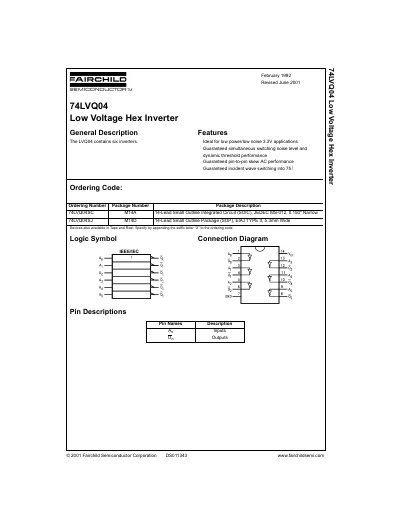

This document is a datasheet for the Fairchild Semiconductor 74LVQ04, a low voltage hex inverter designed for 3.3V applications. It guarantees simultaneous switching noise levels and dynamic threshold performance. The device is available in 14-lead Small Outline Integrated Circuit (SOIC) and Small Outline Package (SOP) formats.
| Supply Voltage | 2.0V to 3.6V |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Number of Inverters | Six |
| Package Type 1 | 14-Lead Small Outline Integrated Circuit (SOIC) |
| Package Type 2 | 14-Lead Small Outline Package (SOP) |
The recommended operating supply voltage is between 2.0V and 3.6V.
The 74LVQ04 contains six inverters.
