The 74VHC04 is a high performance, low power CMOS inverter. It features high noise immunity, stable output and input protection circuit. This device can be used for 5V to 3V systems and two supply systems such as battery backup.

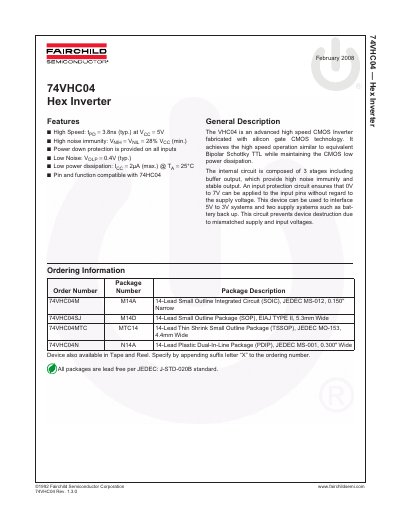

This document is a datasheet for the Fairchild Semiconductor 74VHC04, a high-speed CMOS Hex Inverter. It features high noise immunity, low power dissipation, and input protection allowing operation with voltages up to 7V. The device is pin and function compatible with the 74HC04 series.
| Propagation Delay (Typical) | 3.8ns |
|---|---|
| Supply Voltage (Operating) | 2.0V to +5.5V |
| Operating Temperature | -40°C to +85°C |
| DC Output Current (Max) | +25mA |
The typical propagation delay is 3.8ns at a supply voltage of 5V.
Yes, the device is pin and function compatible with the 74HC04.
The absolute maximum supply voltage rating is +7.0V.
