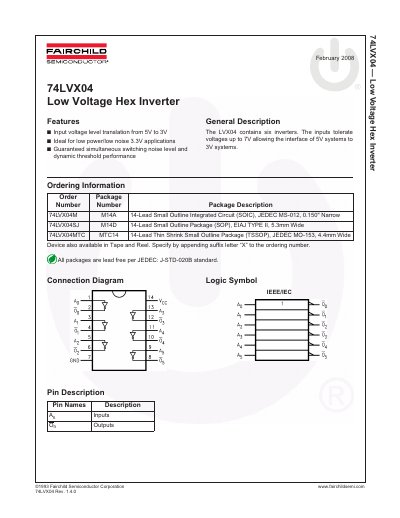

The 74LVX04 is a low voltage hex inverter that is ideal for low power/low noise 3.3V applications. The input voltage can be translated from 5V to 3V, allowing it to be used in both 5V and 3V systems.
The 74LVX04 is a low voltage hex inverter designed for low power and low noise 3.3V applications. It contains six inverters with inputs that tolerate voltages up to 7V, allowing for the interface of 5V systems to 3V systems. The device guarantees simultaneous switching noise levels and dynamic threshold performance.
| Supply Voltage | 2.0V to 3.6V |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Number of Inverters | Six |
| Input Voltage Translation | 5V to 3V |
The recommended operating supply voltage is between 2.0V and 3.6V.
Yes, the inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems.
