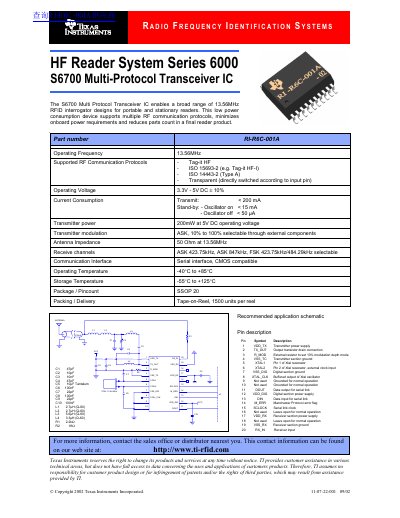

The Texas Instruments RI-R6C-001A is a 13.56MHz RFID reader that supports Tag-it HF, ISO 15693-2, ISO 14443-2 and Transparent communication protocols. It features a 3.3V-5V DC operating voltage, a maximum current consumption of 200mA, and a working temperature range of -40°C to +85°C.
The RI-R6C-001A is a low power consumption Multi-Protocol Transceiver IC designed for 13.56MHz RFID interrogator designs. It supports multiple RF communication protocols, including Tag-it HF-I and ISO 14443-2 Type A, and minimizes onboard power requirements to reduce parts count in final reader products.
| Operating Frequency | 13.56MHz |
|---|---|
| Part number | RI-R6C-001A |
| Operating Voltage | 3.3V - 5V DC + 10% |
| Current Consumption Transmit | < 200 mA |
| Stand-by Current (Oscillator on) | <15mA |
| Transmitter power | 200mW at 5V DC operating voltage |
| Antenna Impedance | 50 Ohm at 13.56MHz |
| Operating Temperature | -40°C to +85°C |
| Package / Pincount | SSOP 20 |
It supports Tag-it HF, ISO 14443-2 Type A, and Transparent modes.
The transmitter uses ASK modulation with selectable depth from 10% to 100%.
The device uses a serial interface compatible with CMOS.
