The TI 2000 Series Antennas offer 6 form factors, are proven in harsh industrial environments, and provide Best in Class Performance through patented HDX technology for applications including access control, vehicle identification, container tracking, asset management, and waste management

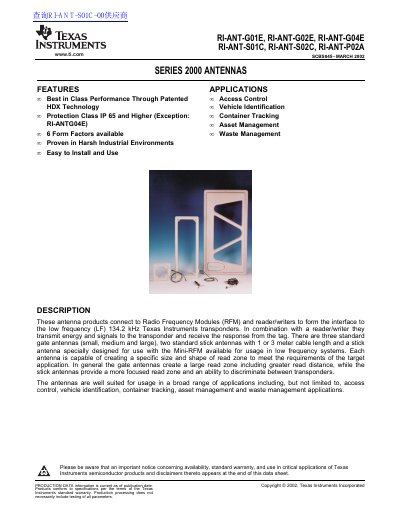

The document describes the Series 2000 antenna products from Texas Instruments, which connect to Radio Frequency Modules (RFM) and reader/writers to interface with low frequency (LF) 134.2 kHz transponders. The series includes three standard gate antennas of varying sizes and two stick antennas designed for specific read zones in access control, vehicle identification, and asset management applications.
| Operating Temperature (Gate) | -30 to +60 °C |
|---|---|
| Storage Temperature (Gate) | -40 to +70 °C |
| Inductance (Gate) | Typically 26-27 µH @ 134.2 kHz |
| Protection Class (Gate G01E/G02E) | IP 65 |
| Inductance (Stick S01C/S02C) | Typically 27 µH @ 134.2 kHz |
| Protection Class (Stick) | IP 65 or IP 66 |
They are designed for low frequency (LF) systems operating at 134.2 kHz.
The standard stick antennas have a cable length of 1 meter or 3 meters.
