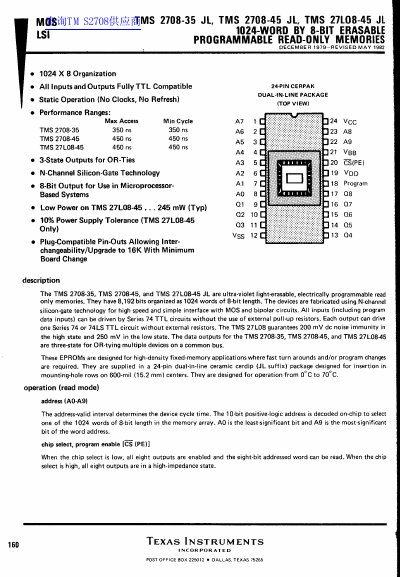

This document provides technical specifications for the TMS 2708-35, TMS 2708-45, and TMS 27L08-45 JL, which are ultra-violet light-erasable, electrically programmable read-only memories. These devices feature a 1024-word by 8-bit organization and are fabricated using N-channel silicon-gate technology for high-speed operation and simple interface with MOS and bipolar circuits.
| Organization | 1024 words of 8-bit length |
|---|---|
| Package | 24-pin CERPAK |
| Operating Temperature | 0°C to 70°C |
| Access Time (TMS 2708-45) | 450 ns |
| Power Dissipation (Typical) | 245 mW |
The devices have 8,192 bits organized as 1024 words of 8-bit length.
Yes, the data outputs are three-state for OR-tying multiple devices on a common bus.
The devices are designed for operation from 0°C to 70°C.
