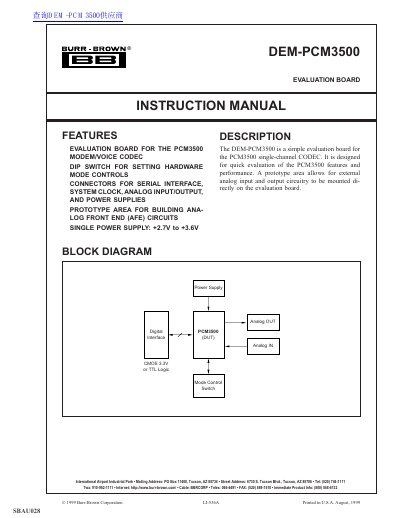

This document is the datasheet of DEM-PCM3500, which introduces the features and characteristics of the product.
The DEM-PCM3500 is a simple evaluation board designed for the PCM3500 single-channel CODEC. It allows for quick evaluation of the device's features and performance by providing connections for serial interfaces, system clocks, analog inputs/outputs, and power supplies.
A key feature of this board is the inclusion of a prototype area, which enables users to build and mount their own analog front-end (AFE) circuits directly onto the board. The manual details the specific functions of various connectors and explains how to configure hardware mode controls using DIP switches.
It is a simple evaluation board for the PCM3500 single-channel CODEC, designed for quick evaluation of its features and performance.
The board uses a single power supply ranging from +2.7V to +3.6V.
The full-scale input voltage is 1.8Vp-p when using a +3V power supply.
