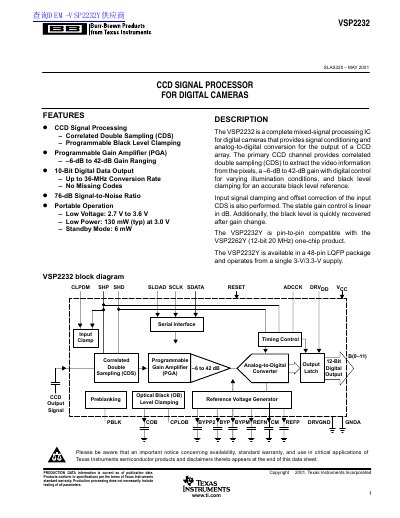

The VSP2232 is a complete mixed-signal processing IC from Texas Instruments (TI) for digital cameras that provides signal conditioning and analog-to-digital conversion for the output of a CCD array.
The VSP2232 is a complete mixed-signal processing IC designed for digital cameras. It provides signal conditioning and analog-to-digital conversion for the output of a CCD, featuring Correlated Double Sampling (CDS) and a Programmable Gain Amplifier (PGA) array. The device supports a conversion rate of up to 36 MHz and offers a 10-bit digital data output.
| Product Type | CCD Signal Processor |
|---|---|
| Gain Ranging | -6-dB to 42-dB |
| Digital Data Output | 10-Bit |
| Conversion Rate | Up to 36-MHz |
| Signal-to-Noise Ratio | 76-dB |
| Supply Voltage | 2.7 V to 3.6 V |
| Typical Power Consumption | 130 mW |
| Standby Power | 6 mW |
| Package Type | 48-pin LQFP |
It is a complete mixed-signal processing IC for digital cameras that provides signal conditioning and analog-to-digital conversion for the output of a CCD.
The PGA array provides a gain ranging from -6-dB to 42-dB.
The device supports a conversion rate of up to 36-MHz.
